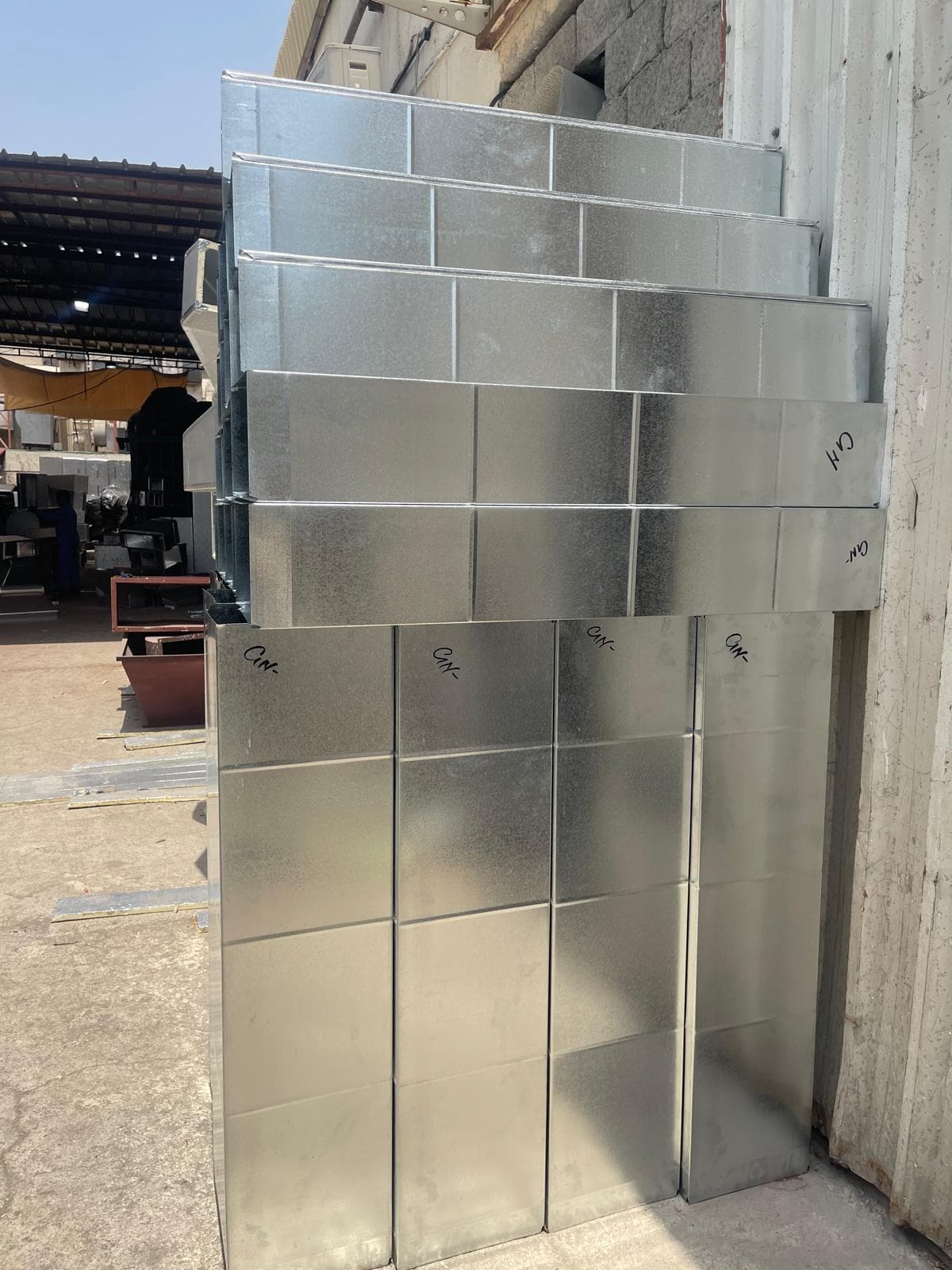

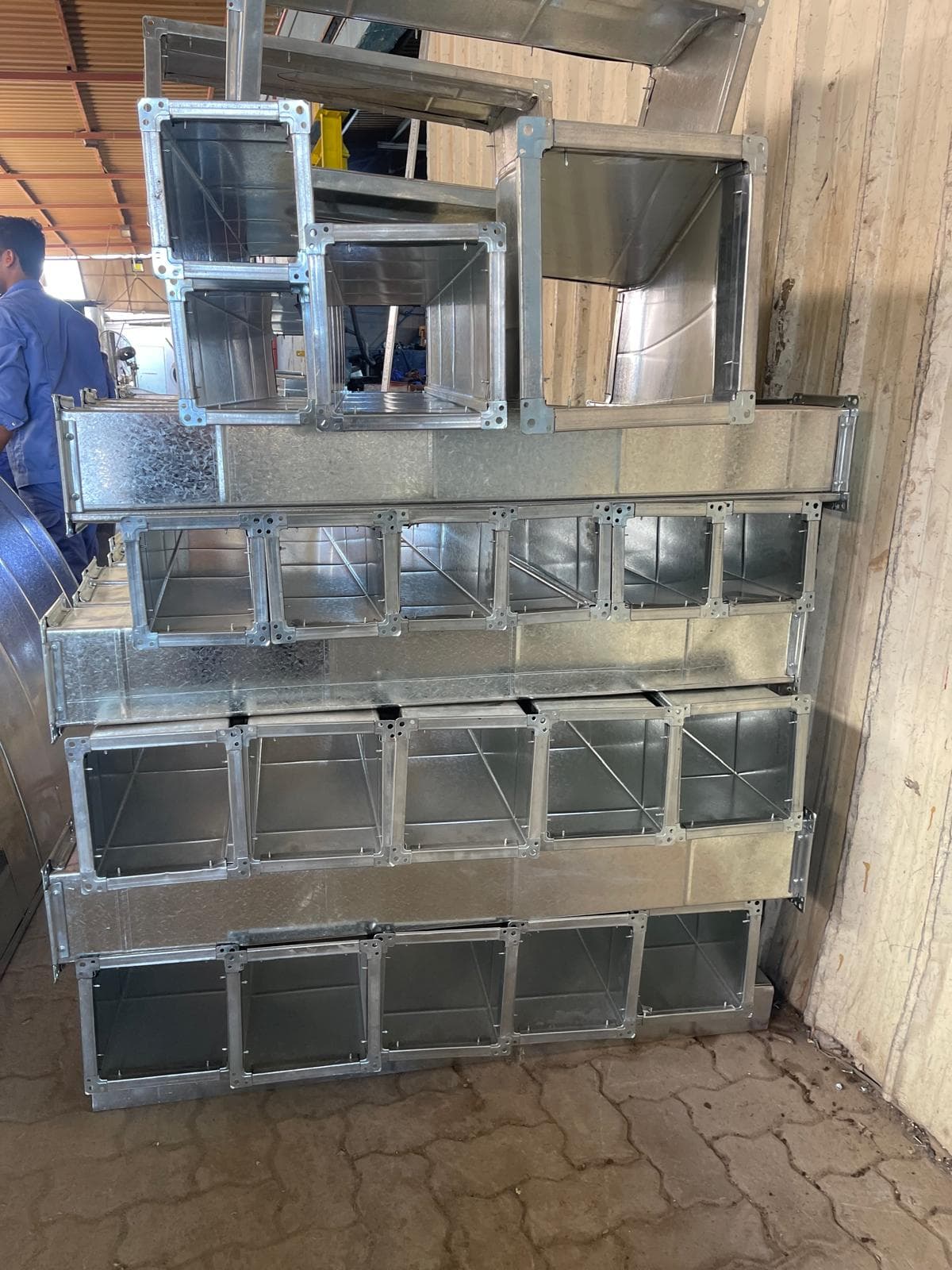

Rectangular GI Duct
Galvanized iron rectangular ductwork for reliable HVAC air distribution in commercial and industrial projects.
Description
Rectangular GI ductwork is fabricated to SMACNA and DW144 requirements using high-quality galvanized sheet. Each section is accurately cut and formed to maintain dimensional accuracy, minimize pressure losses, and ensure consistent joint alignment. Suitable for supply, return, and mixed-air systems across the UAE, with custom sizes, gauges and connection details available per project specification.
Specifications
| Gauge | 0.5mm – 1.6mm (project-dependent) |
| Shapes | Rectangular |
| Sealing | Gasket or mastic seal per project detailing |
| Material | Galvanized Iron (GI) |
| Standard | SMACNA / DW144 |
| JointTypes | TDC/TDF, slip & drive, flanged connections |
| Application | Commercial & industrial HVAC ductwork (UAE) |
Related Products

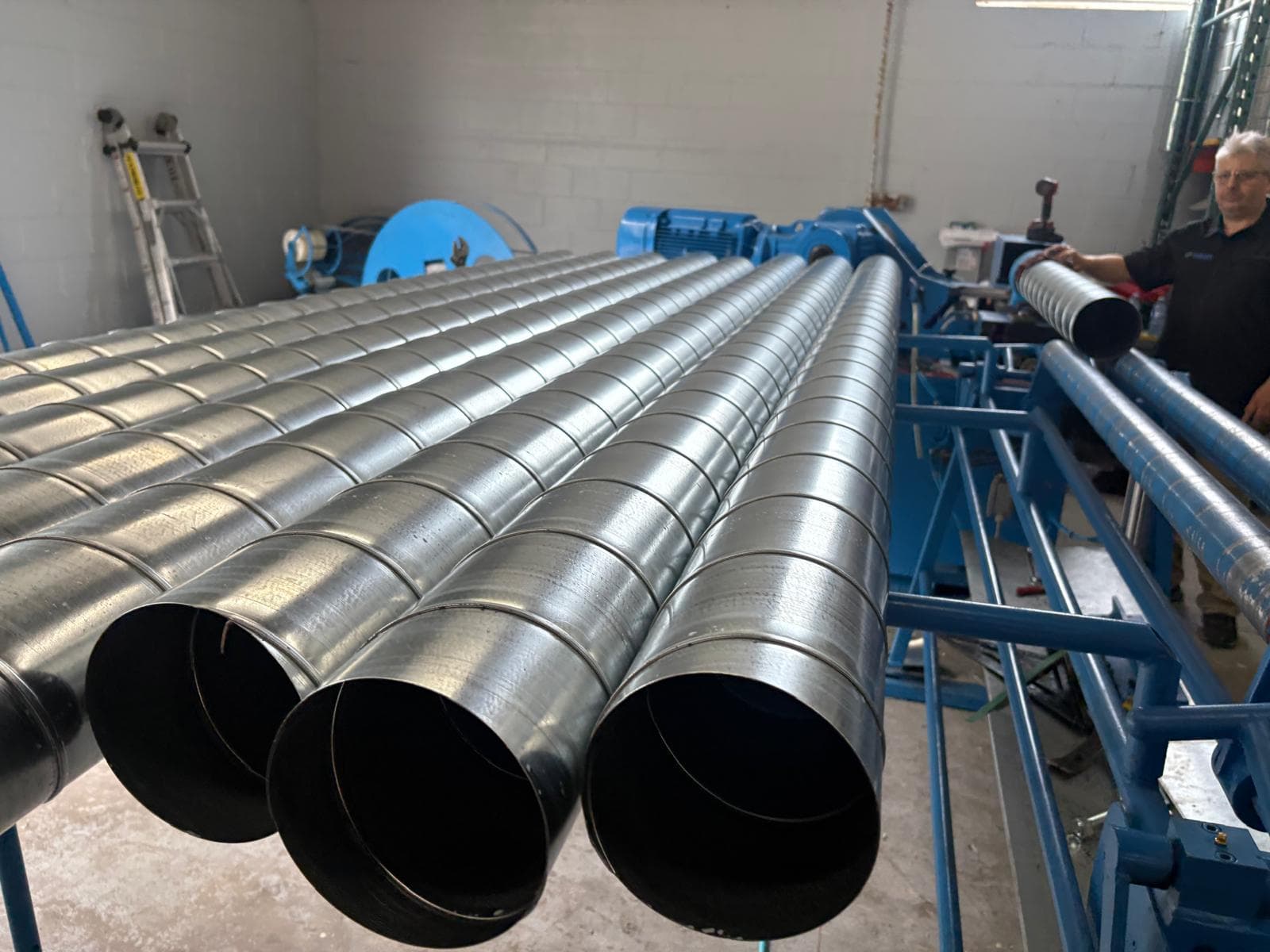

Round & Spiral Duct
Spiral-wound round ducting engineered for stable airflow, reduced friction losses and durable performance.

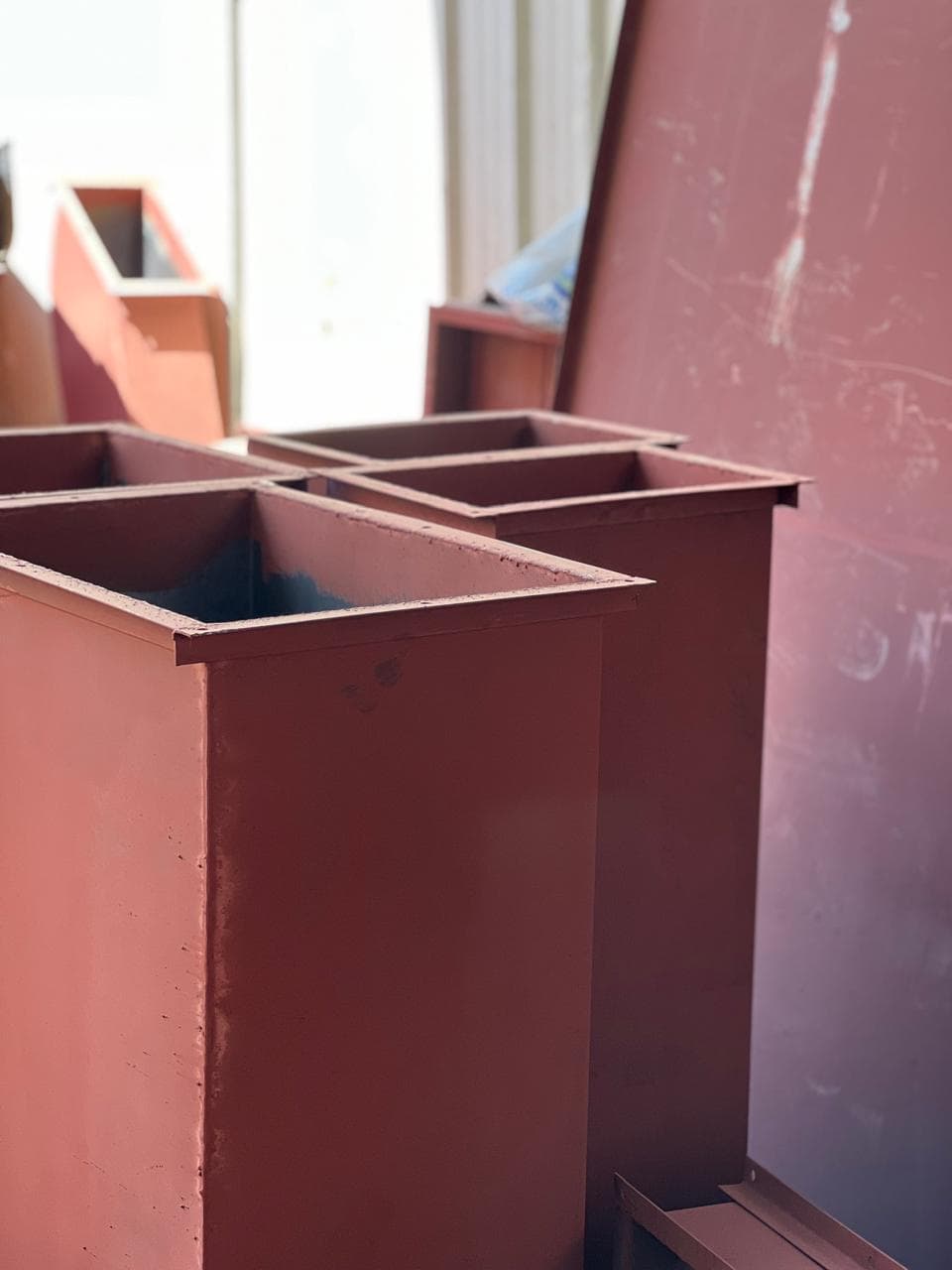

Mild Steel (MS) Duct
Mild steel ductwork for high-temperature and industrial exhaust where GI specification is not suitable.

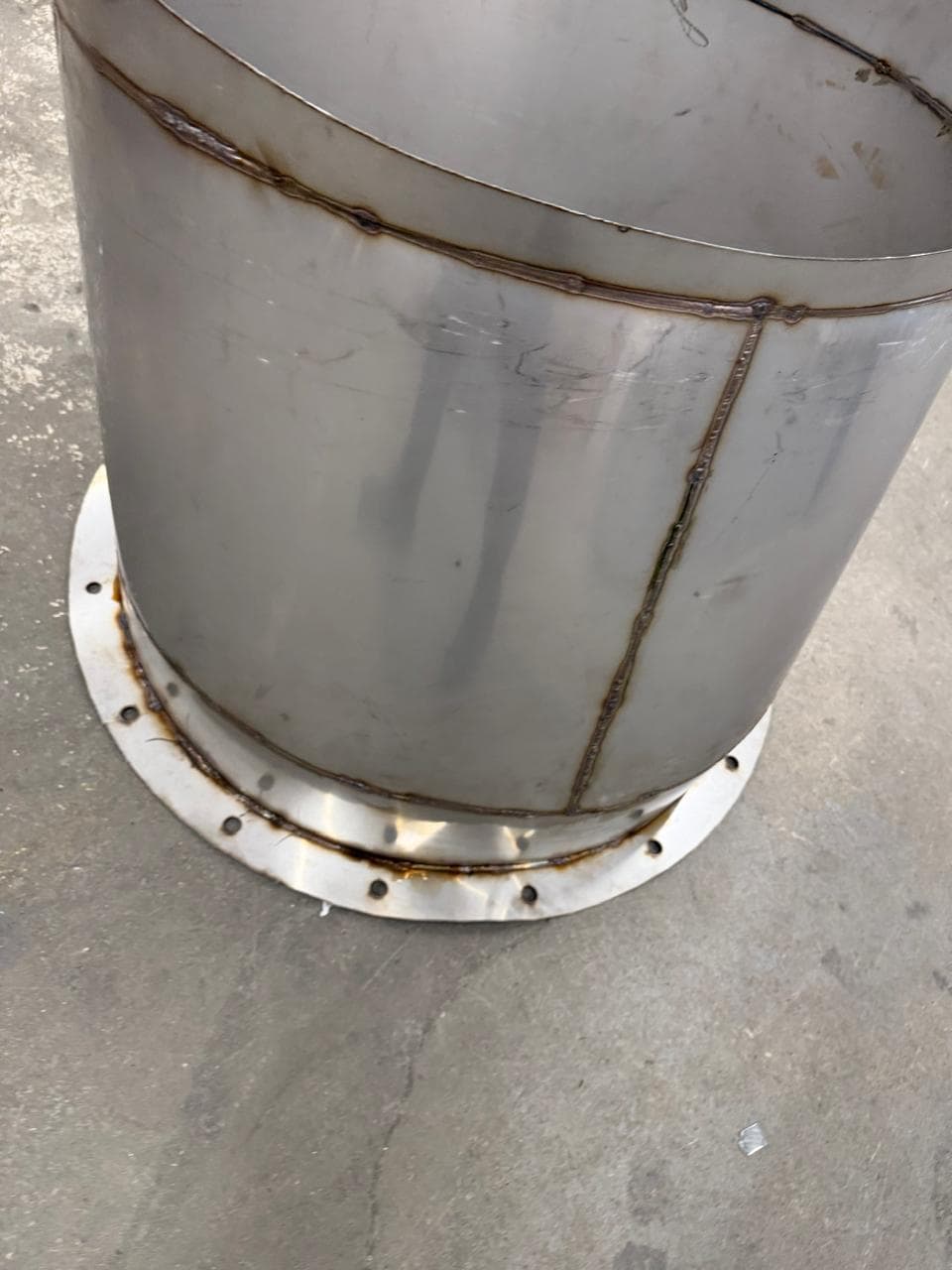

Stainless Steel (SS) Duct
Stainless steel ductwork for hygienic and corrosive environments requiring long-term durability and cleanliness.
